US Model Mercedes-Benz
1963-81 600
|

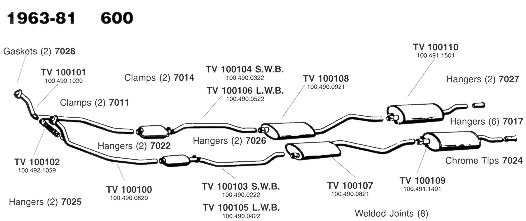

1963-81 600 Exhaust System
| Quantity |
Part No. |
Description |
Reference |
| 1 |
TV100100 |
Left Engine Pipe |
100.490.1020
|
| 1 |
TV100101 |
Right Engine Pipe |
100.490.0820
|
| 1 |
TV100102 |
Cross over pipe |
100.492.1059
|
| 1 |
TV100103 S.W.B. |
Left Front Muffler Assembly |
100.490.0222
|
| 1 |
TV100104 S.W.B. |
Right Front Muffler Assembly |
100.490.0322
|
| 1 |
TV100105 L.W.B |
Left Front Muffler Assembly |
100.490.0422
|
| 1 |
TV100106 L.W.B |
Right Front Muffler Assembly |
100.490.0522
|
| 1 |
TV100107 |
Left Middle Muffler Assembly |
100.490.0821
|
| 1 |
TV100108 |
Right Middle Muffler Assembly |
100.490.0921
|
| 1 |
TV100109 |
Left Rear Muffler Assembly |
100.491.1401
|
| 1 |
TV100110 |
Right Rear Muffler Assembly |
100.491.1501
|
| 2 |
7028 |
1.90" I.D. ALu gasket Ring |
003.997.4440
|
| 2 |
7025 |
Pre-Muffler Metal Hanger |
100.492.0140
|
| 2 |
7022 |
Forward Rubber O-ring Hanger |
113.492.0082
|
| 2 |
7014 |
2" Pipe Clamp |
|
| 2 |
7026 |
Middle Muffler Rubber Hanger |
183.492.0282
|
| 2 |
7027 |
Rear Muffler Metal Hanger |
100.490.0040
|
| 6 |
7017 |
Rubber O-ring Hanger |
112.492.0282
|
| 2 |
7024 |
2" Chrome Tip |
123.492.0714
|
| 8 |
|
Welded Joints |
|
|
Call
1-800-243-1170
or
E-mail us to Order!
|
Each of Timevalve’s quality, rust-free stainless steel
1963-81 Mercedes 600 aftermarket exhaust systems includes: left and right
engine pipes, crossover pipe, left and right front muffler assemblies, left and
right middle muffler assemblies, and left and right rear muffler assemblies,
that may be purchased “complete” or as individual components.
Separately priced installation kit includes: two engine pipe gaskets, four metal
hangers, eight rubber o-ring hangers, two 2.00” stainless pipe clamps, two heavy
duty rubber hangers, and a vial of joint sealer compound.
We also supply chrome tips (priced separately).
